JL-250III Softgel Machine

+86 18262272207

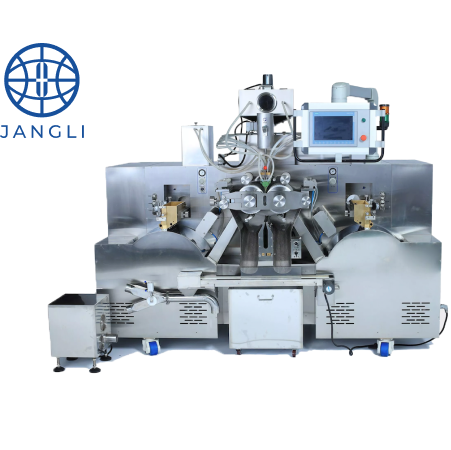

JL-250III Softgel Machine (Servo)

JL-250III is a SERVO MOTOR driving mass production soft gelain encapsulation machine. When running at a velocity of 7 RPM, it can produce a whopping 200,000 softgel capsules per hour. Its power level ensures that the softgel machine can mass produce softgel capsules for long periods of time, without developing any technical issues.
JANGLI JL-250III Softgel capsule machine has same die roller size as traditional JL-250II machine, but with almost twice productivity. It achieves superior performance, without consuming a lot of floor space.
Medicine pump filling volume adjustment, injection timing and die roller alignment can all be adjusted on PLC touch screen on stream, which makes the operation quite easy and reduces raw material waste.
JL-250 soft gel making machine is the most popular equipment for large production of animal gelain softgels as well as tapioca starch or carrageenan base gelatin capsules.

JL-250III Softgel Encapsulator
Die Roll Size	Ø150x250mm (10’’)
Output	205,800 caps/hour(8#Oval) 102,900caps/hour(20#Oblong)
Rotating Speed	0~8RPM(frequency control)
Single Plunger Filling Volume	0~2ml
Plunger Quantity	24 pieces (3 on each side)
Filling Volume Accuracy	+/- 0.5%
Power Consumption	16kw
Dimension	2400x1250x2100(h)mm
Weight	1600kgs
